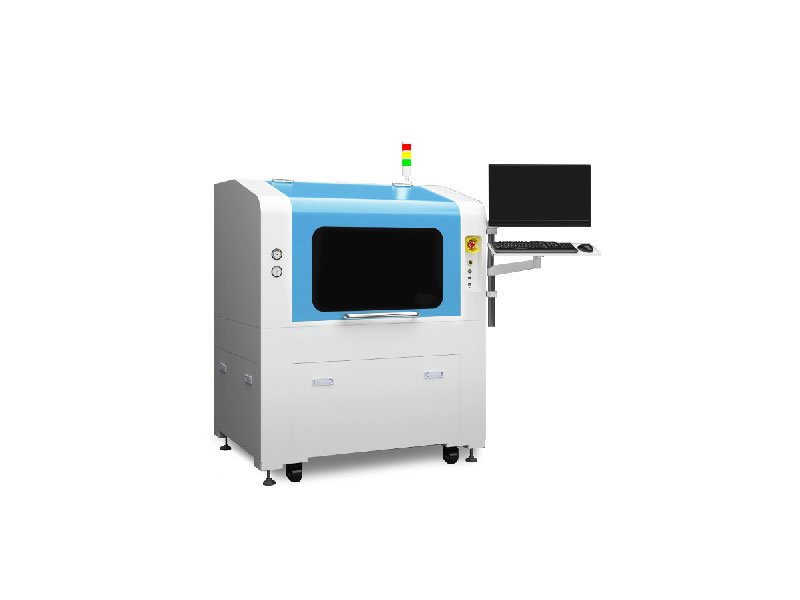

High Speed Sorting Machine S10
Get the latest price? We'll respond as soon as possible(within 12 hours)
- Details
Applications: | |
1 | High speed and High accuracy die sorting |
2 | Apply for varied chips sorting flipping and transfer |
Basic functions | |
1 | Placement accuracy: XY:≤±38μm@3σ Θ resolution:≤±2° |
2 | Vision system: 1μm/pix to 10μm/pix (customer design support) |
Technical specification | |
1 |
Wafer XY table: Maximum Travel: 8″*8″(230mm*350mm) Flipping Angle:90° Wafer Input: ø6″ or ø8″(Optional) can also support 2”and 4” Gel-pack/Waffle-pack Z axis travel of needle: 3mm |
2 |
Die bonding XY Table: Maximum Travel: X Y(230mm*350mm) Accuracy: ±0.3mil Repeatability: ±0.2mil |
